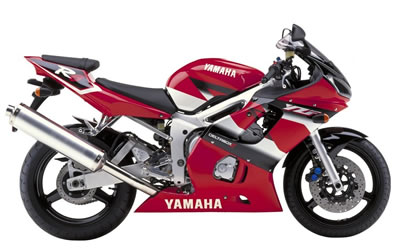

The Yamaha YZF-R6 2001 Model Specs
| Engine | |
| Type | 599 cc, Liquid cooled, 4 - cylinders in line |
| Bore x stroke (mm) | 65,5 x 44,5 |
| Compression ratio | 12.4:1 |
| Stroke | 4-stroke |
| Valve train | DOHC |
| Valves per cylinder | 4 |
| Fuel system | Keihin CVRD37 with TPS system |
| Ignition | TCI(digital) |
| Transmission | Chain |
| Gears | 6 speed |
| Power (Hp/rpm) | 120 / 13000 (crank) |
| Torque (Nm/rpm) | 68.1 / 11500 |
| Chassis | |
| Brakes front dual | 298mm discs with 4-piston calipers |
| Brakes rear single | 220mm disc with 2-piston calipers |
| Tires front | 120/60-17 |
| Tires rear | 180/55-17 |
| Suspension | |
| Front Suspension | 43mm inverted telescopic fork. |
| Rear Suspension | Link suspension swing arm. |
| Dimensions | |
| Length | 2025mm |
| Width | 690mm |
| Height | 1105mm |
| Seat Height | 820 mm |
| Wheelbase | 1380mm |
| Fuel Capacity - reserve | 17 ltr |
| Dry Weight | 167.5 kg |
