Color Options |

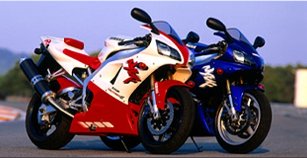

| - | Team Yamaha Blue/White; Red/White |
| Engine |
| Type: | Liquid Cooled, in-line 4-stroke 4cyl |
| Valve arrangement: | 5 valves/cyl |
| Displacement: | 998cc |
| Bore x Stroke: | 74.0 x 58.0 mm |
| Compression ratio: | 11.8:1 |
| Carburation: | 4, 40mm Mikuni CV downdraft BDSR40 with TPS |
| Ignition Digital: | Digital TCI |
| Transmission |
| Type: | 6-speed w/multi-plate clutch |
| Gear Ratio - 1st Gear: | 39/15 (2.600) |
| Gear Ratio - 2nd Gear: | 35/19 (1.842) |
| Gear Ratio - 3rd Gear: | 30/20 (1.500) |
| Gear Ratio - 4th Gear: | 28/21 (1.333) |
| Gear Ratio - 5th Gear: | 30/25 (1.200) |
| Gear Ratio - 6th Gear: | 29/26 (1.115) |
| Final Drive: | 43/16 #530 chain 114 link |
| Chassis |
| Front Suspension: | 41mm inverted telescopic fork w/adj. preload, compression and rebound damping; 5.3" travel (135mm) |
| Rear Suspension: | Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1" travel (130mm) |
| Front Brake: | Dual 298mm floating discs w/4-piston calipers |
| Rear Brake: | 245mm disc w/2-piston caliper |
| Front Wheel: | 3.50 x 17 in., cast aluminum |
| Rear Wheel: | 6.00 x 17in., cast aluminum |
| Front Tyre: | 120/70-ZR17 |
| Rear Tyre: | 190/50-ZR17 |
| Dimensions |
| Height: | 43.1" (1,095mm) |
| Length: | 80.1" (2,035mm) |
| Width: | 27.4" (695mm) |
| Rake/Trail: | 24.0º/3.6 in.(91mm) |
| Wheelbase: | 54.9 in (1394mm) |
| Seat Height: | 32.0 in. (813mm) |
| Fuel Capacity: | 4.7 gallons (18 liters) |
| Oil Capacity w/filter replacement: | 3.1 Qt. (2.9 l) |
| Weight: | 437 lbs (198kg) wet, 390 lb (177kg) dry |
| Instruments: | Digital speedometer, tachometer, clock, temp. guage, lights for neutral, high beam, turn signals, and low fuel |
| Performance |
| Fuel Consumption: | 41 mpg average |
| Horsepower: | 128.2 @ 10,000 rpm |
| Torque: | 70.8 ft.-lbs.@ 7750 rpm |
| 1/4 Mile: | 10.22 @140.15 |
| Top Speed: | 165.8 mph |
